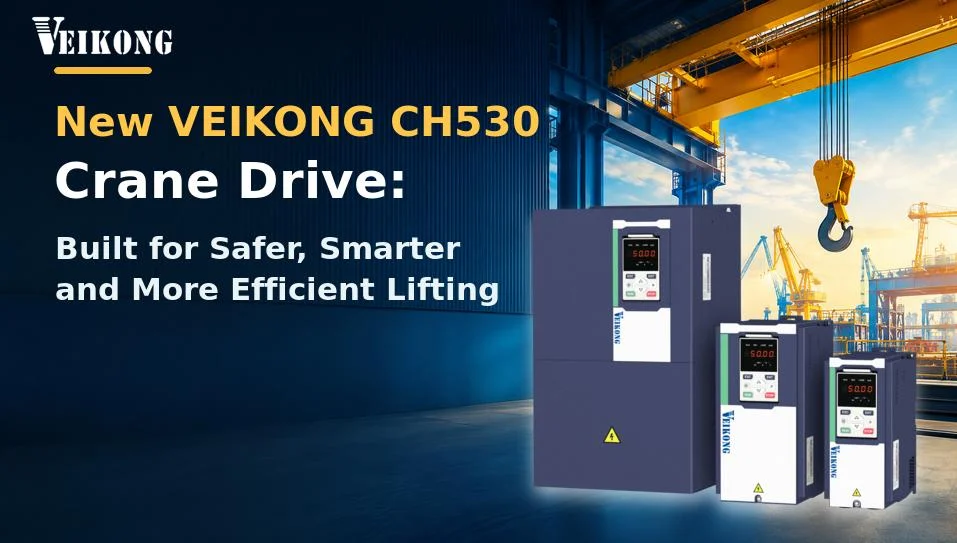

In lifting applications, a variable frequency drive must do much more than adjust motor speed. It must coordinate the mechanical brake, provide sufficient torque at low and zero speed, reduce load swing, respond to changing loads, and keep every lifting and travelling movement stable. Developed around these real operating challenges, VEIKONG has officially launched the new CH530 Series Crane Drive. Integrating professional brake sequence control, intelligent anti-slip technology, trolley and bridge anti-sway control, zero-servo support, and automatic speed adjustment according to load, the CH530 provides a specialized drive solution for modern lifting equipment. The new VEIKONG CH530 crane variable frequency drive supports asynchronous motors and permanent magnet synchronous motors. With a power range from 0.75 kW to 710 kW and three-phase 380–480 V input, it can be configured for a wide range of cranes, hoists and material handling systems. Safer Starting and Stopping with Professional Brake Control For a crane, starting and stopping are critical operating stages. If the mechanical brake opens before the motor develops sufficient torque, the suspended load may slip. If the brake closes at the wrong time, the equipment may experience mechanical shock, unstable movement or excessive wear. The CH530 integrates professional brake sequence control developed specifically for lifting equipment. The drive monitors output frequency and current before releasing or applying the mechanical brake. Adjustable delays help coordinate motor torque with brake action during both starting and stopping. Under closed-loop vector control, the CH530 can establish pre-torque before the brake is released, supporting a smoother transition from load holding to motor operation. This helps reduce load slipping and improves starting stability, especially in demanding hoisting applications. Strong Low-Speed Torque and Intelligent Anti-Slip Control Hoists, cranes and lifting mechanisms often need high torque before the motor reaches normal operating speed. A general-purpose speed control solution may not provide the response required when starting a heavy suspended load. The VEIKONG CH530 features an intelligent anti-slip algorithm and can provide starting torque of at least 150% under the appropriate vector control configuration. This enables the motor to produce useful torque at low or zero speed and supports stable operation during lifting and lowering. The integrated zero-servo function provides additional operational support. If the mechanical brake is delayed or its braking force is insufficient, the drive can detect motor shaft movement while the system is powered, attempt to hold the mechanism at its current position, and activate an alarm. These functions support the crane safety system but do not replace the mechanical brake, limit protection or other safety devices. The drive, motor, brake and crane control system must be correctly selected and commissioned as one complete system. Reduce Load Swing and Improve Positioning Efficiency Load swing is a common challenge in crane operation. It can slow down material handling, increase positioning difficulty and require additional time before the next movement can begin. The CH530 integrates anti-sway control for trolley and bridge travel. By optimizing acceleration and deceleration, the drive helps reduce load swing during crane movement and supports faster, more stable positioning. Linear and S-curve acceleration and deceleration are available, together with four adjustable ramp-time groups. These settings allow different operating profiles to be configured for hoisting, trolley travel, bridge travel and tower crane slewing. Automatic Speed Adjustment According to Load A crane does not operate under the same load during every working cycle. Empty or lightly loaded travel can often run faster, while heavy loads require more controlled movement. The CH530 can automatically increase operating speed under light-load conditions to improve working efficiency. When a heavy load or overload condition is detected, the drive can reduce speed to support stable operation and reduce stress on the motor and mechanical system. This load-based speed adjustment helps crane users balance productivity, equipment protection and operational stability without relying on one fixed speed for every working condition. Simpler Commissioning for Different Crane Motors Crane upgrade and replacement projects often involve motors from different manufacturers. The CH530 supports asynchronous motors, permanent magnet synchronous motors and cone motors, making it suitable for both new equipment and retrofit projects. Its one-key motor identification function helps identify important motor and mechanical parameters, reducing the work required to match third-party motors. Built-in crane parameter macros also allow technicians to complete the basic configuration for common lifting applications more quickly. The CH530 comes with a standard LED keypad. Dual-display and color LCD keypads are available as options. The optional LCD keypad supports parameter backup, copying and file export, making it easier to manage multiple drives, share parameter files and provide remote commissioning support. Compact Design for Demanding Industrial Environments Compared with the previous generation, the CH530 uses a high-power-density design that reduces product volume by approximately 30%. The compact structure helps save control cabinet space and simplifies the electrical layout. Selected models up to 90 kW are available with built-in braking units, while higher-power models can work with external braking units. An independent cooling air duct helps prevent dust from entering sensitive internal areas, and high-airflow cooling fans support stable heat dissipation. The automatic conformal-coating process provides consistent protection for circuit boards, improving product adaptability in industrial environments involving dust, humidity, temperature changes and unstable power supplies. One Crane Drive for Multiple Lifting Applications The VEIKONG CH530 lifting equipment inverter can be applied to overhead cranes, gantry cranes, quay cranes, yard cranes, tower cranes, construction hoists, mine hoists and other material handling equipment. By combining professional brake control, high starting torque, anti-slip operation, anti-sway technology and automatic load-based speed adjustment, the CH530 addresses the key control requirements of modern crane systems. For crane manufacturers, system integrators and end users seeking a professional crane variable frequency drive, VEIKONG CH530 offers a flexible platform for both asynchronous and permanent magnet synchronous motor applications. Contact VEIKONG with your motor nameplate, lifting capacity, operating mechanism and control requirements, and our team will help you evaluate a suitable CH530 crane drive solution.
