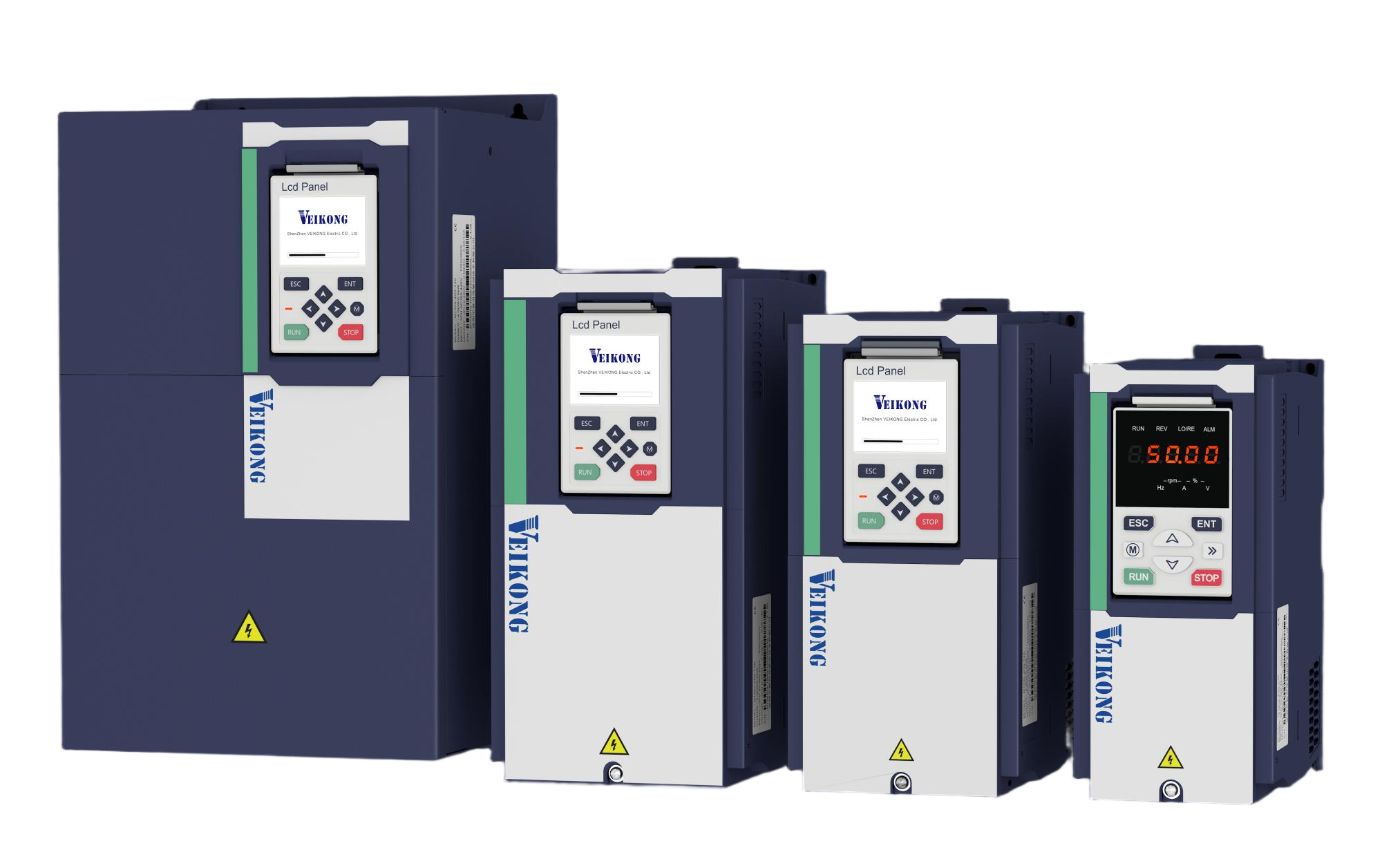

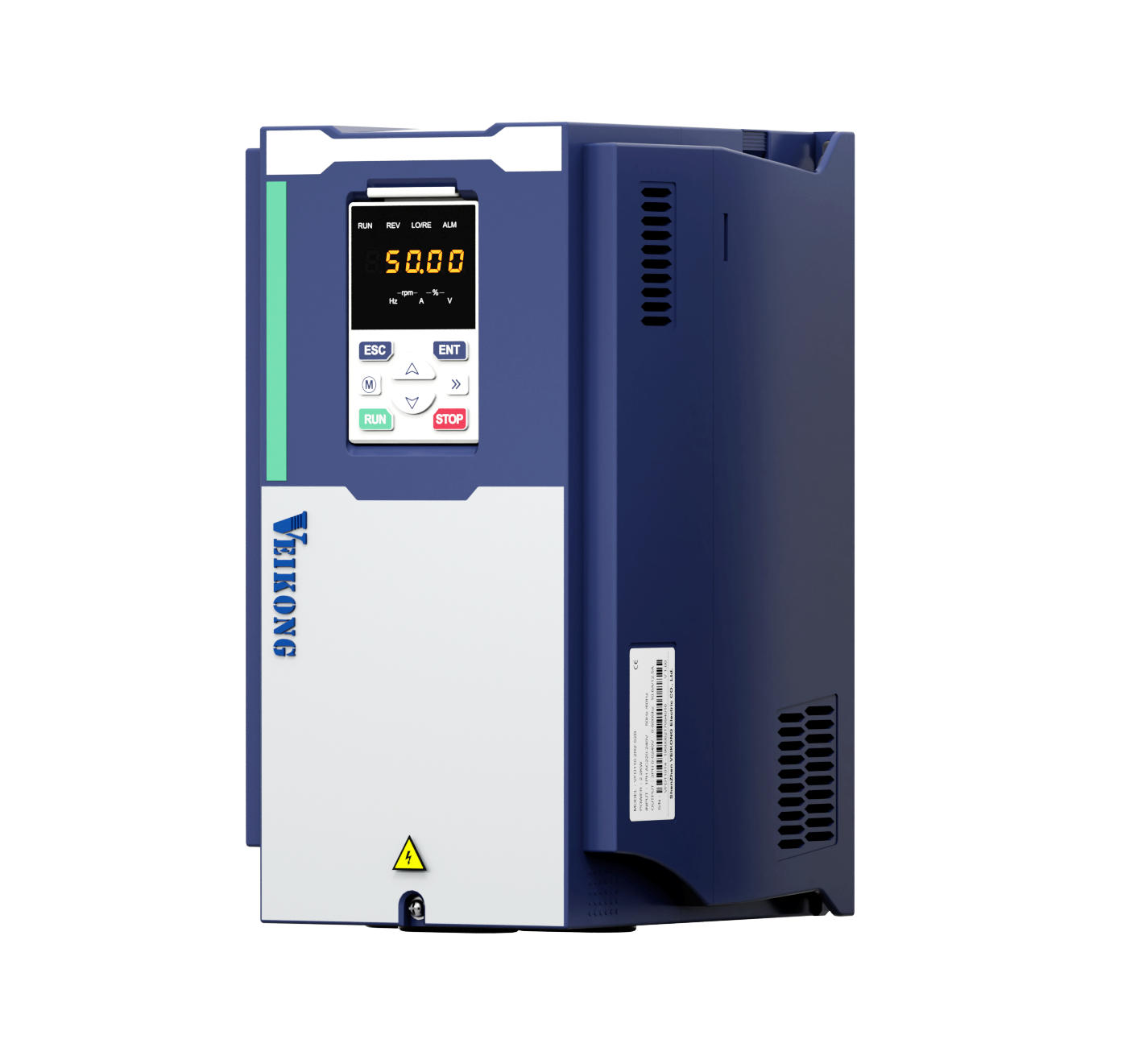

High Performance VC Frequency inverter
VFD500
- AC induction motor, PMSM
- Module design support IO expansion card and optional module card
- Standard LED keypad, optional LCD keypad and support keypad copy function
- Standard ModBus RS485; 3 optional field bus communication cards: Profibus-DP, CANopen, DeviceNet
Download User Manual
Download
User Manual
VFD500
- AC induction motor, PMSM
- Module design support IO expansion card and optional module card
- Standard LED keypad, optional LCD keypad and support keypad copy function
- Standard ModBus RS485; 3 optional field bus communication cards: Profibus-DP, CANopen, DeviceNet
Features
Outstanding Features
Applicable motors: AC induction motor, PMSM
Standard LED keypad, optional LCD keypad and support keypad copy function
Module design support IO expansion card and optional module card
High torque control precision: ±8% rated torque(SVC), ±5% rated torque(FVC)
Wide speed regulation: VVF/1:50, SVC/1:200, FVC/1:1000 and High speed control precision: ±0.2% rated speed
Protections: Over-voltage stall, under-voltage, current limit, overload, overheat, over speed, over-voltage, etc.
Torque at low frequency: 1Hz/150%(VVF), 0.25Hz/150%(SVC), and 0Hz/180%(FVC)
Standard ModBus RS485; 3 optional field bus communication cards: Profibus-DP, CANopen, DeviceNet
