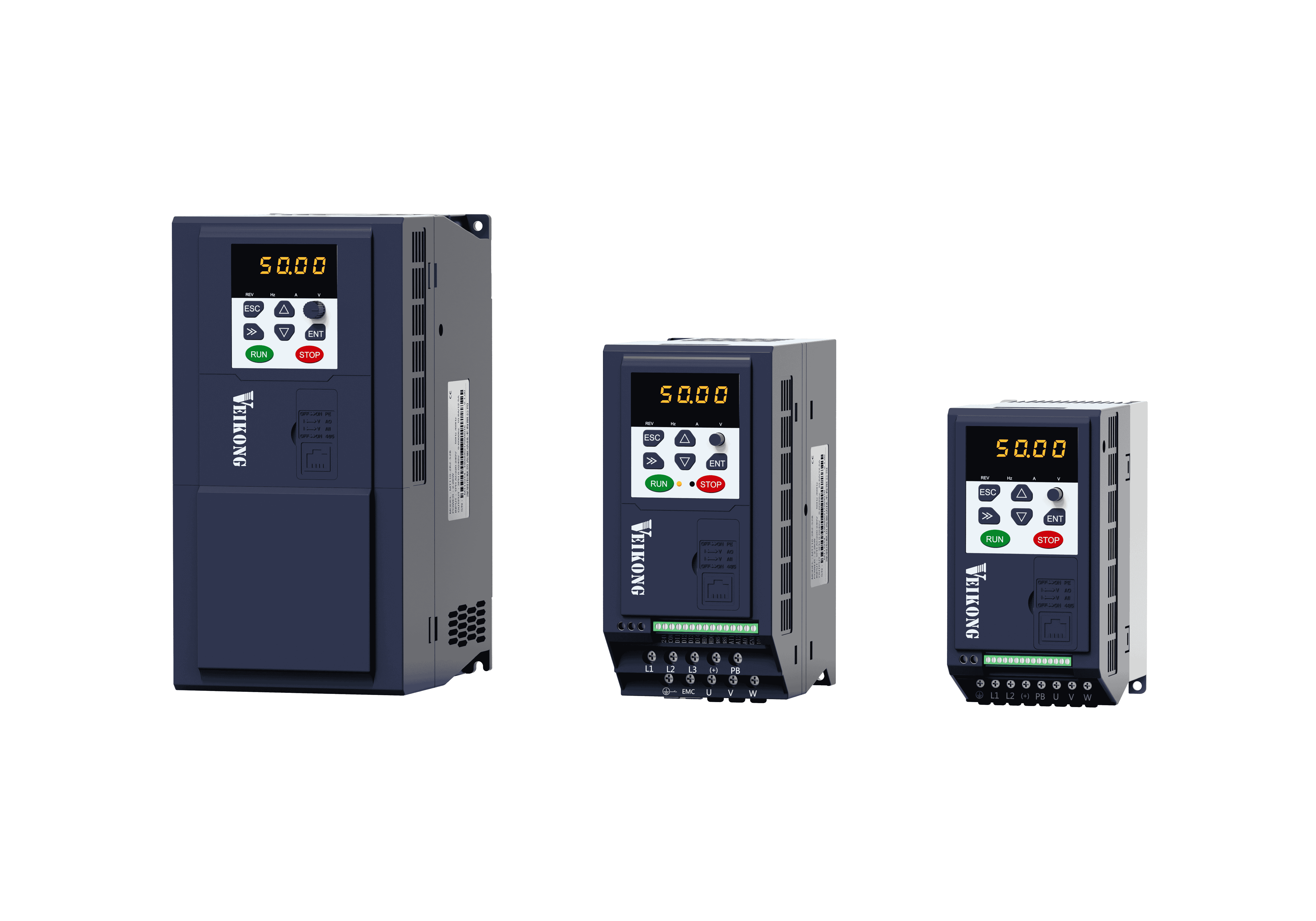

VFD 500M AC Drive

Technical Features

1 Phase 200/240V 50/60Hz 0.4~4KW
3 Phase 380/480V 50/60Hz 0.75~7.5KW

  • Vector control +V/F control
  • Tension control and torque mode control
  • Up to 200% starting torque at 0hz
  • Output frequency up to 2000hz
  • Comparator and logic unit/controller
  • Sleeping function
  • Virtual DI function
  • Programmable delay unit
  • Motor Auto-tune (static and dynamic)
  • 2 motor parameter groups
  • DC Injection braking
  • External LED/LCD and shuttle keypad optional
  • Energy saving function
  • High-speed pulse function
  • Spring terminal
  • 5 Digital Inputs
  • 2 AI and 1 AO
  • Modbus RTU/RS485 built in
  • Integral C3 filter
  • CE and Rohs Marked
  • 18 Months warranty

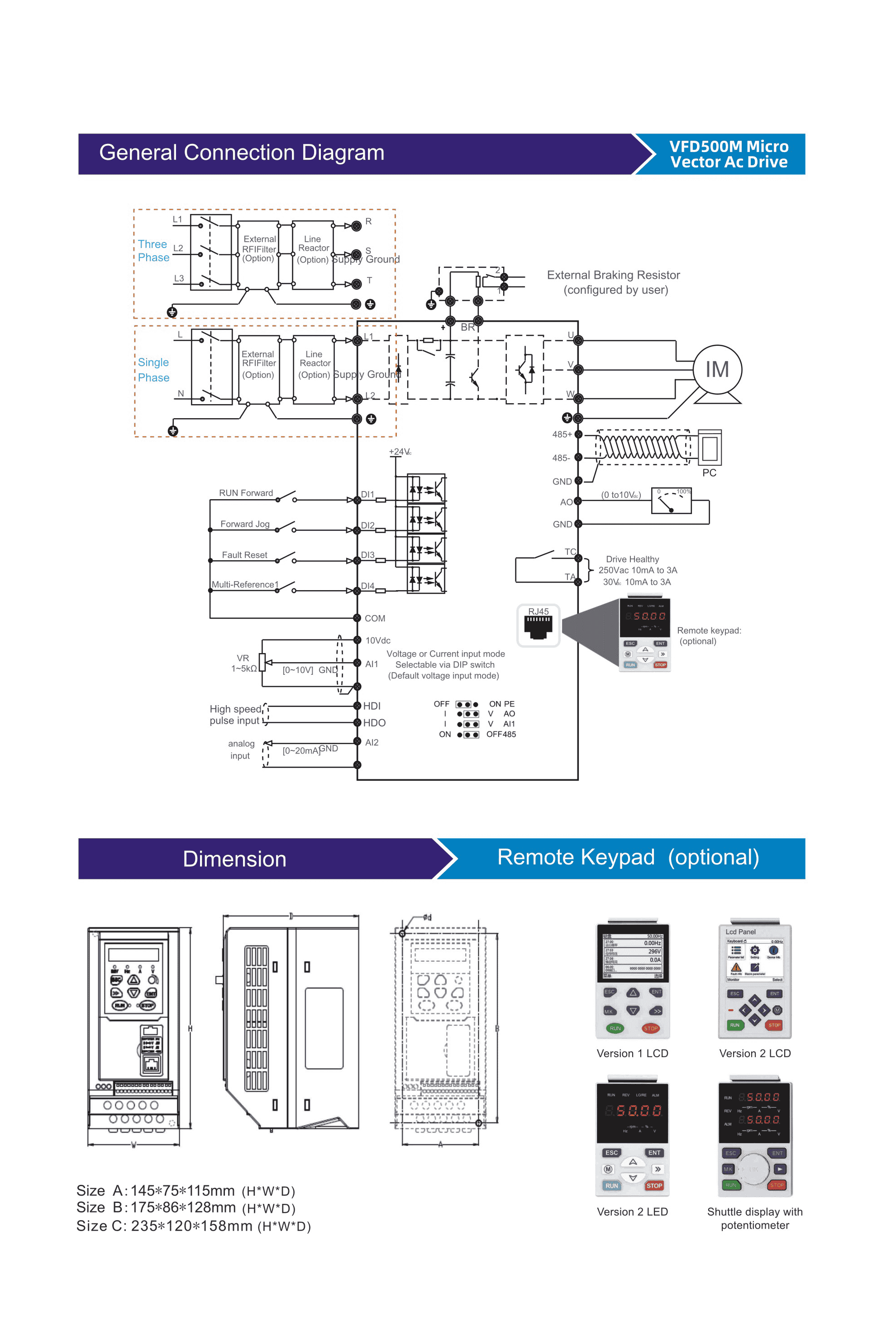

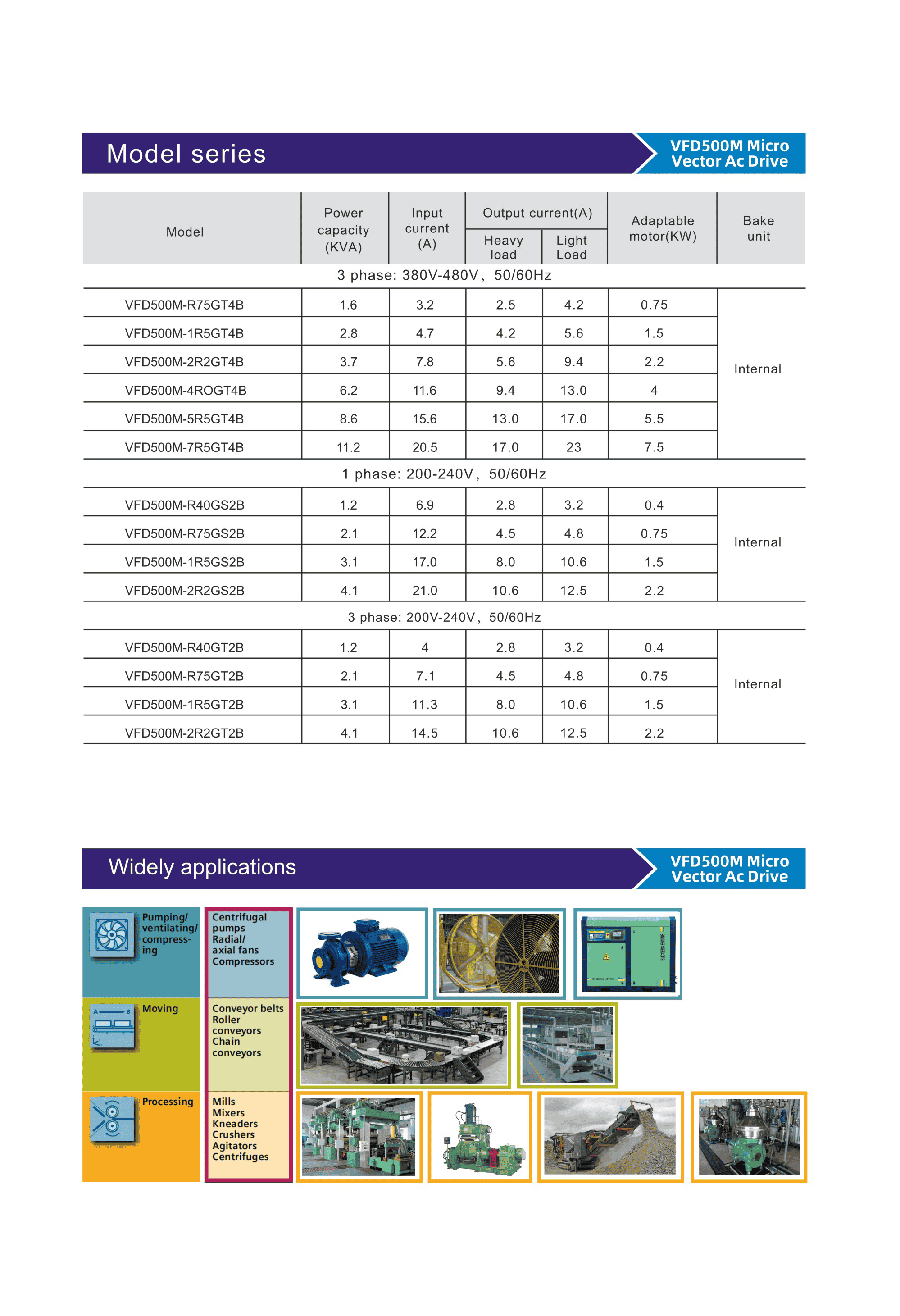

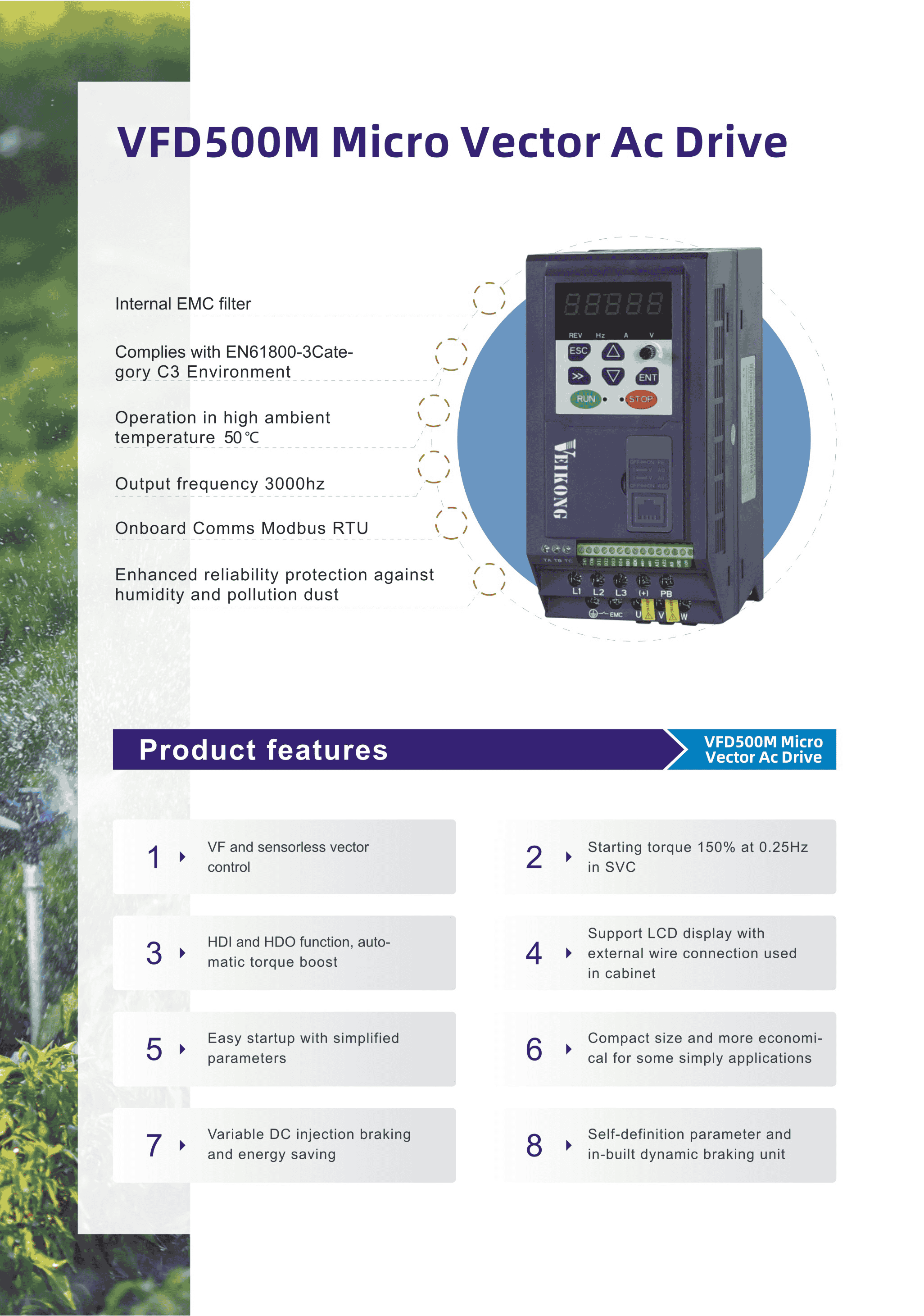

variable frequency drive VFD 500M specification
Variable Frequency Drive- VFD500M
