VFD580 AC Drive

Technical Features

VFD580 High end Vi Variable Frequency Drive VFD580 is a high-standard vector inverter. The product adopts a leading design method, and has excellent performance in terms of performance, scalability, reliability, electromagnetic compatibility, etc. It’s mainly oriented to occasions that have high requirements for comprehensive performance of the product.

Product features:

High preformation:

Drive three-phase AC asynchronous motor and permanent magnet synchronous motor, and supports three control modes of speed, torque and servo position Excellent asynchronous and synchronous motor SVC algorithm can control the speed and torque of the motor with high precision even without encoder feedback, and the low-frequency torque control accuracy is better than that of imported brands.

High reliability

15KW and above models are equipped with built-in DC reactor as standard 37KW and below are equipped with built-in braking unit as standard, and models below 90KW are equipped with brake circuit short circuit protection function The whole series is equipped with buffer relay (contactor) abnormality protection circuit as standard

User friendly:

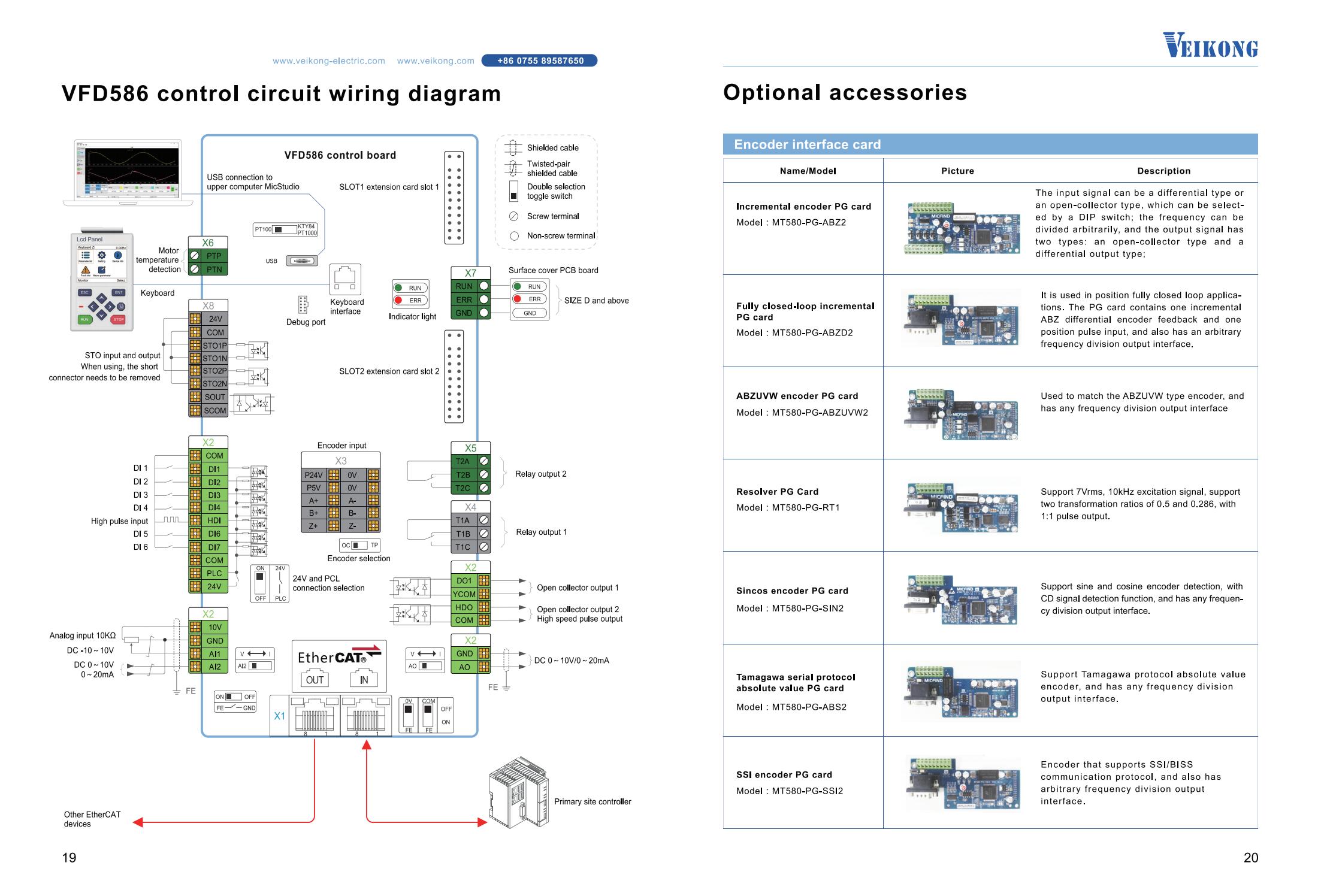

All weak current circuit terminals adopt plug-interminals with humanized identification, which is convenient for wiring and maintenance Standard one-line incremental encoder interface (with Z input) No need to purchase PG card separately in common speed closed-loop occasions Standard motor temperature sensor interface, support PT100PT1000, KTY84, without optional temperature detection card

Technical Features

1 Phase 200/240V 50/60Hz 0.75~7.5KW
3 Phase 200/240V 50/60Hz 0.75~7.5KW
3 Phase 200/480V 50/60Hz 0.75~710KW

  • Special brake logic mechanism for crane and hoist
  • Magnetic flux brake gain

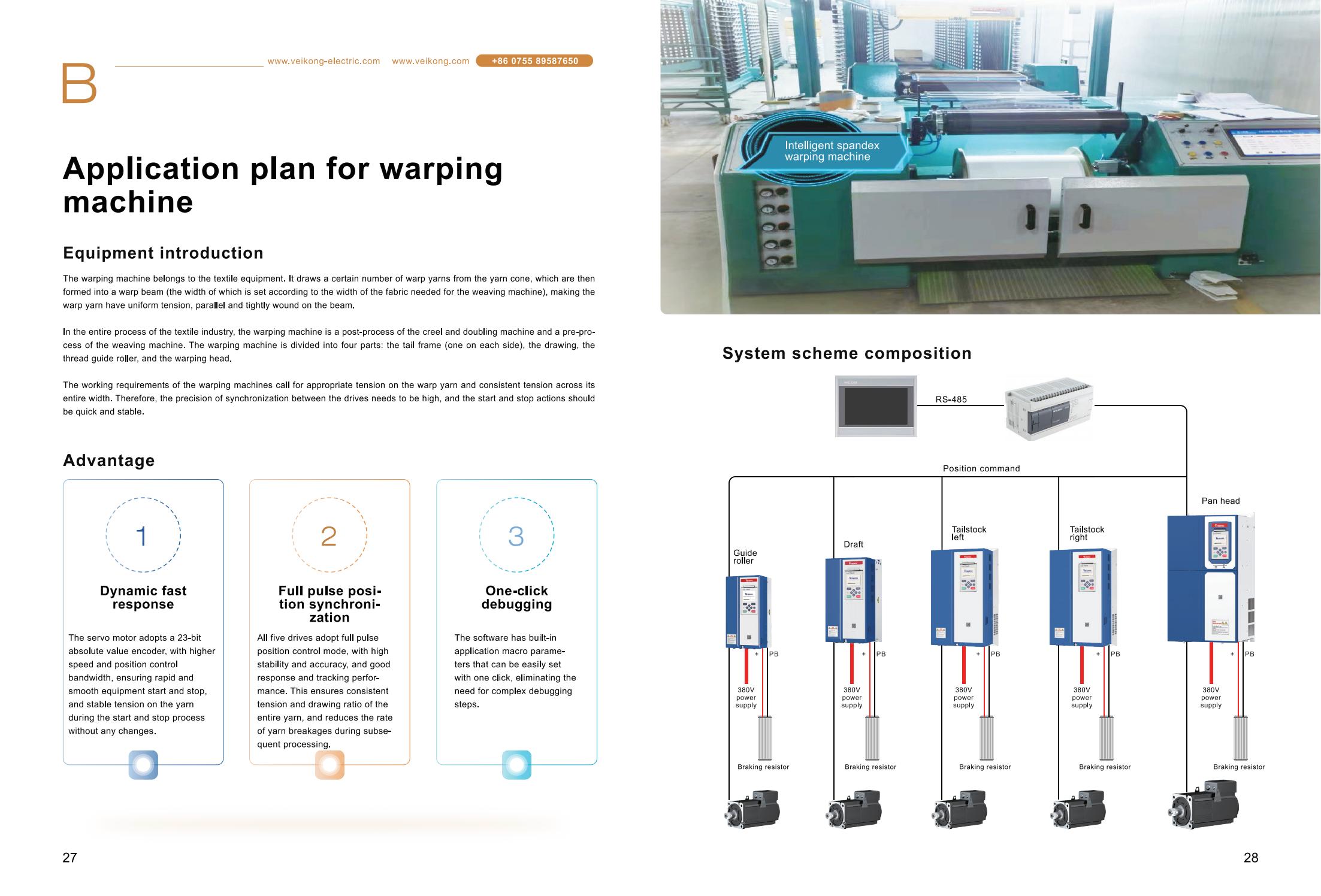

  • Tension control and torque mode control
    UP to 200% starting torque at 0 Hz
  • Asynchronous & Synchronous motor control
  • Comparator and logic unit/controller
  • Sleeping function
  • Output frequency up to 3000 Hz
  • High capacity 256K TI DSP with faster response and higher accuracy
  • Motor Auto- tune (static and dynamic)
    Encoder auto tune
    2 motor parameter groups
  • DC Injection braking
  • LCD keypad and shuttle keypad optional
  • Integral brake chopper (<30KW)
  • 2 PID loop for HVAC
  • Energy saving function

  • Modbus RTU/RS485 built in
  • Digital Input
  • CANopen card optional
  • Profinet card optional
  • 5 Digital Inputs (support Max 9 DI)
  • 2 Analogue Inputs and Outputs
  • 2 Relay output
  • Multiple PG card
  • Support IO extension board and spring terminal IO board optional

  • Integral C3 filter
  • Category C1 & C2 filter options
  • Reactor optional
  • CE and Rohs Marked
  • 18 Months Warranty
Variable Frequency Drives (VFD)
Frequency Division PG Card
IO Extension Card
IO Extension Card
LCD Keypad
Incremental PG Card
Incremental PG Card
Spring Terminal Board
Spring Terminal Board
Rotary Card
Rotary Card
Shuttle Keypad
