VFD 500 AC Drive
High performance general purpose AC Drives
Single-phass/three-phase 220V model: 200V-240V.
Three-phase 380V model: 380V-480V.
- Small size
- Advanced thermal design
- Greatly smaller than the same type of inverter

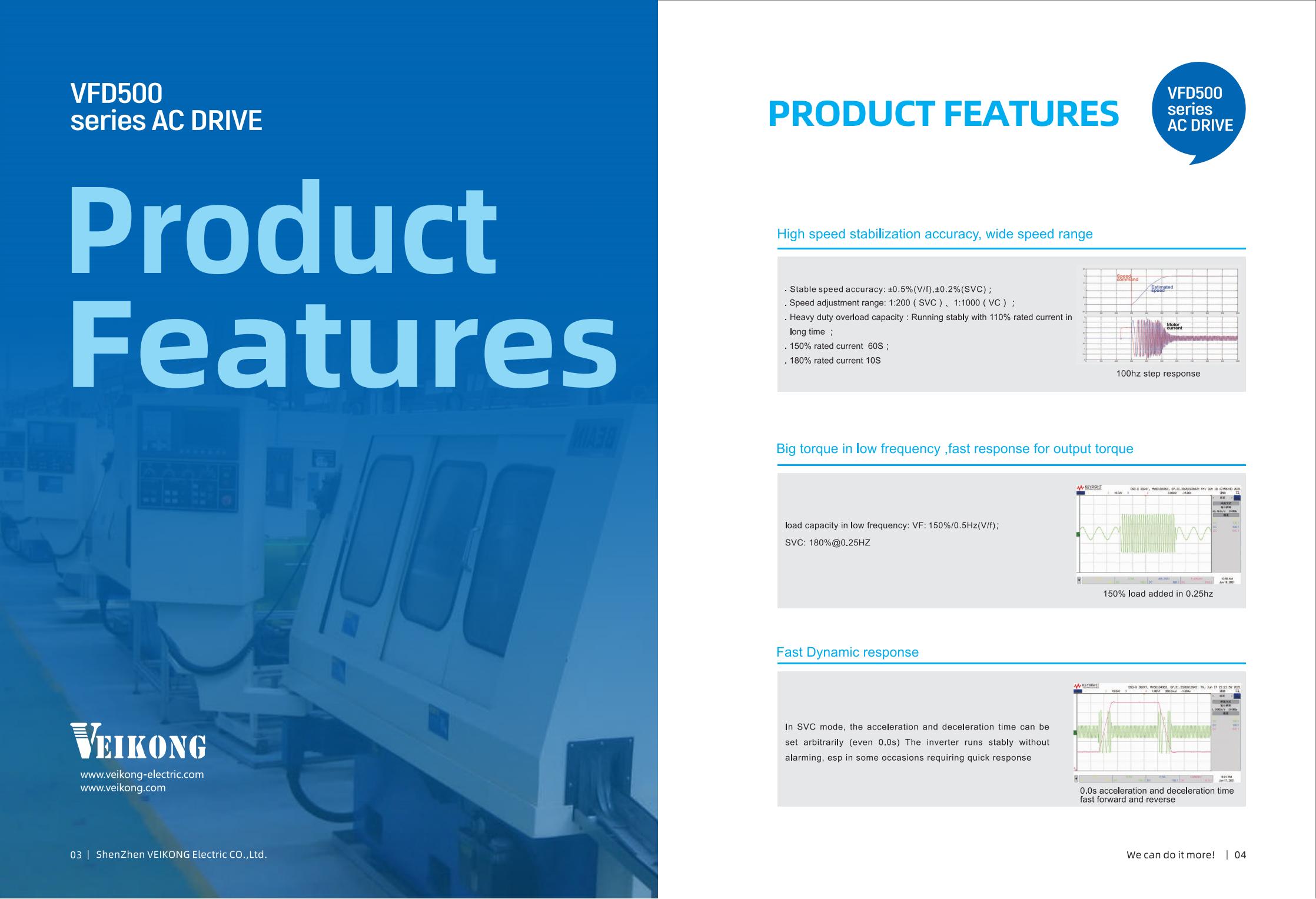

- Stable speed accuracy: £0.6% (SVC) . 0.02% (VC)
- Speed adjusment range: 1200 (SVC). 1:1000.(VC)
- Heavy duty overload capacity: Running stably with 110% rated current in long time
- 150% rated current 60S
- 180% rated current 10S
- Load capacity in low frequency: VF: 180%@0.50HZ
- SVC: 180%@0.25HZ
- V/F control ±0.5%
- SVC control ±0.2%
- Overload capacity 180% for 10seconds
Technical Features
1 Phase 200/240V 50/60Hz 0.75~7.5KW
3 Phase 200/240V 50/60Hz 0.75~7.5KW
3 Phase 200/480V 50/60Hz 0.75~710KW

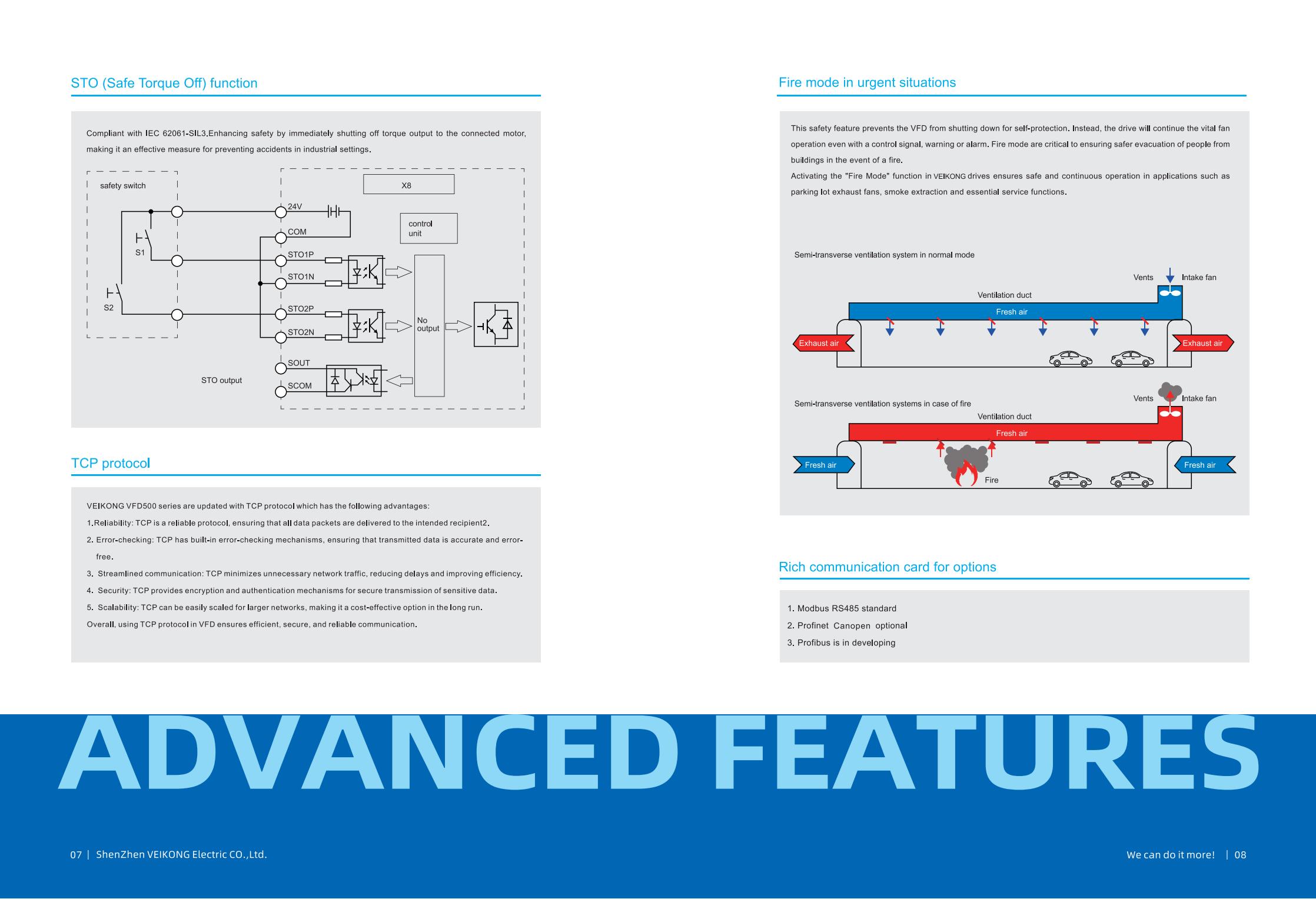

- Special brake logic mechanism for crane and hoist
- Magnetic flux brake gain
- Tension control and torque mode control
UP to 200% starting torque at 0 Hz - Asynchronous & Synchronous motor control
- Comparator and logic unit/controller
- Sleeping function
- Output frequency up to 3000 Hz
- High capacity 256K TI DSP with faster response and higher accuracy
- Motor Auto- tune (static and dynamic)
Encoder auto tune
2 motor parameter groups - DC Injection braking
- LCD keypad and shuttle keypad optional
- Integral brake chopper (<30KW)
- 2 PID loop for HVAC

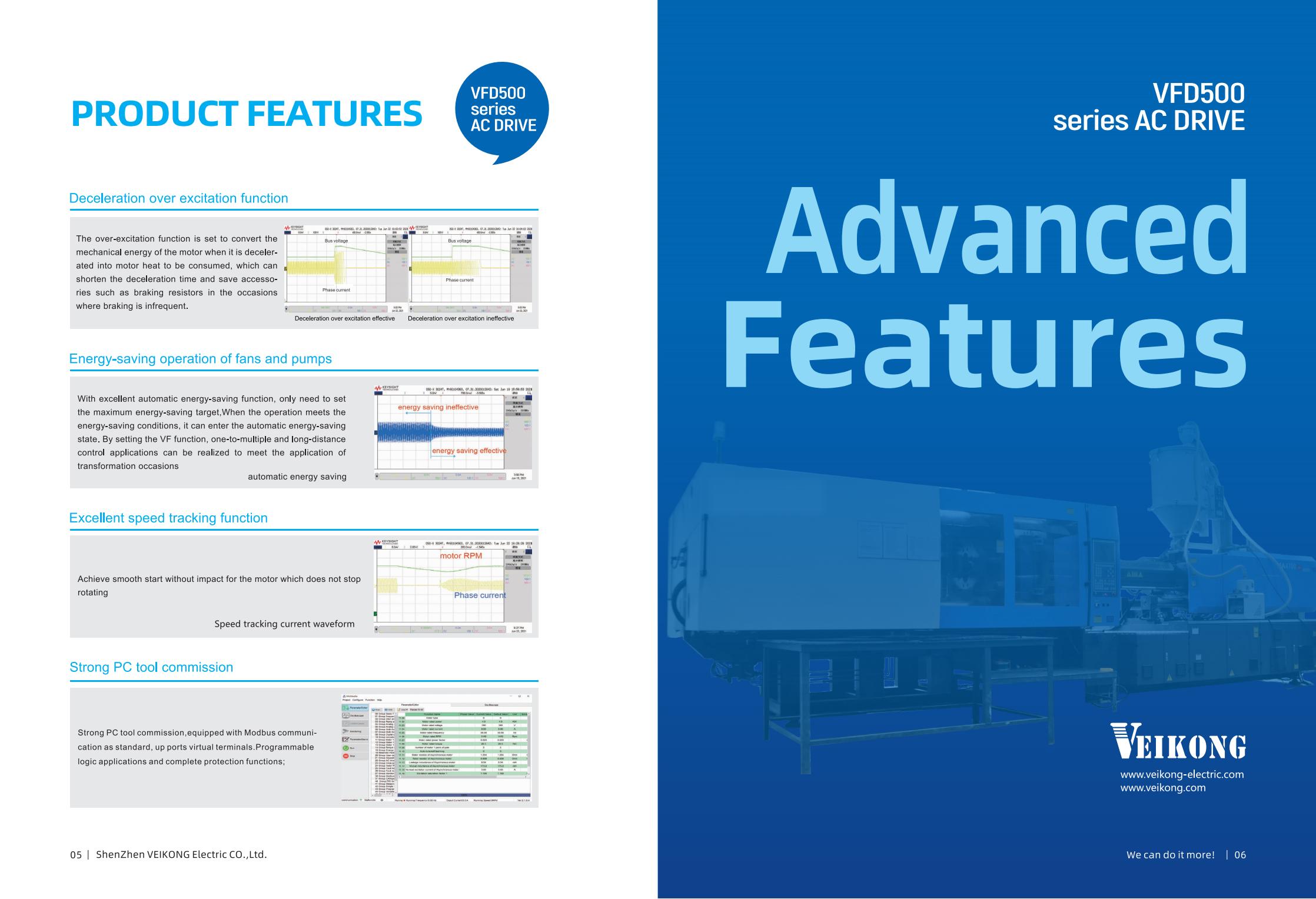

- Energy saving function
- Modbus RTU/RS485 built in
- Digital Input
- CANopen card optional
- Profinet card optional
- 5 Digital Inputs (support Max 9 DI)
- 2 Analogue Inputs and Outputs
- 2 Relay output
- Multiple PG card
- Support IO extension board and spring terminal IO board optional
- Integral C3 filter
- Category C1 & C2 filter options
- Reactor optional
- CE and Rohs Marked
- 18 Months Warranty
