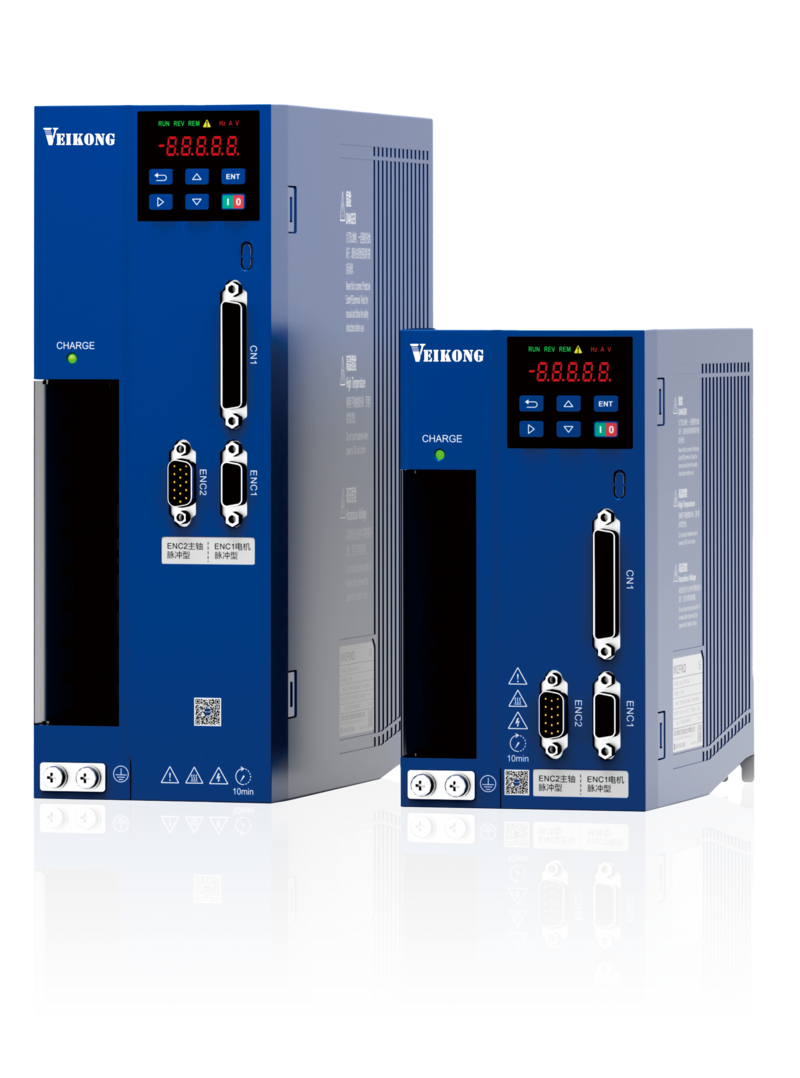

S6 Servo Drive
S6 Spindle Dedicated Servo Drive

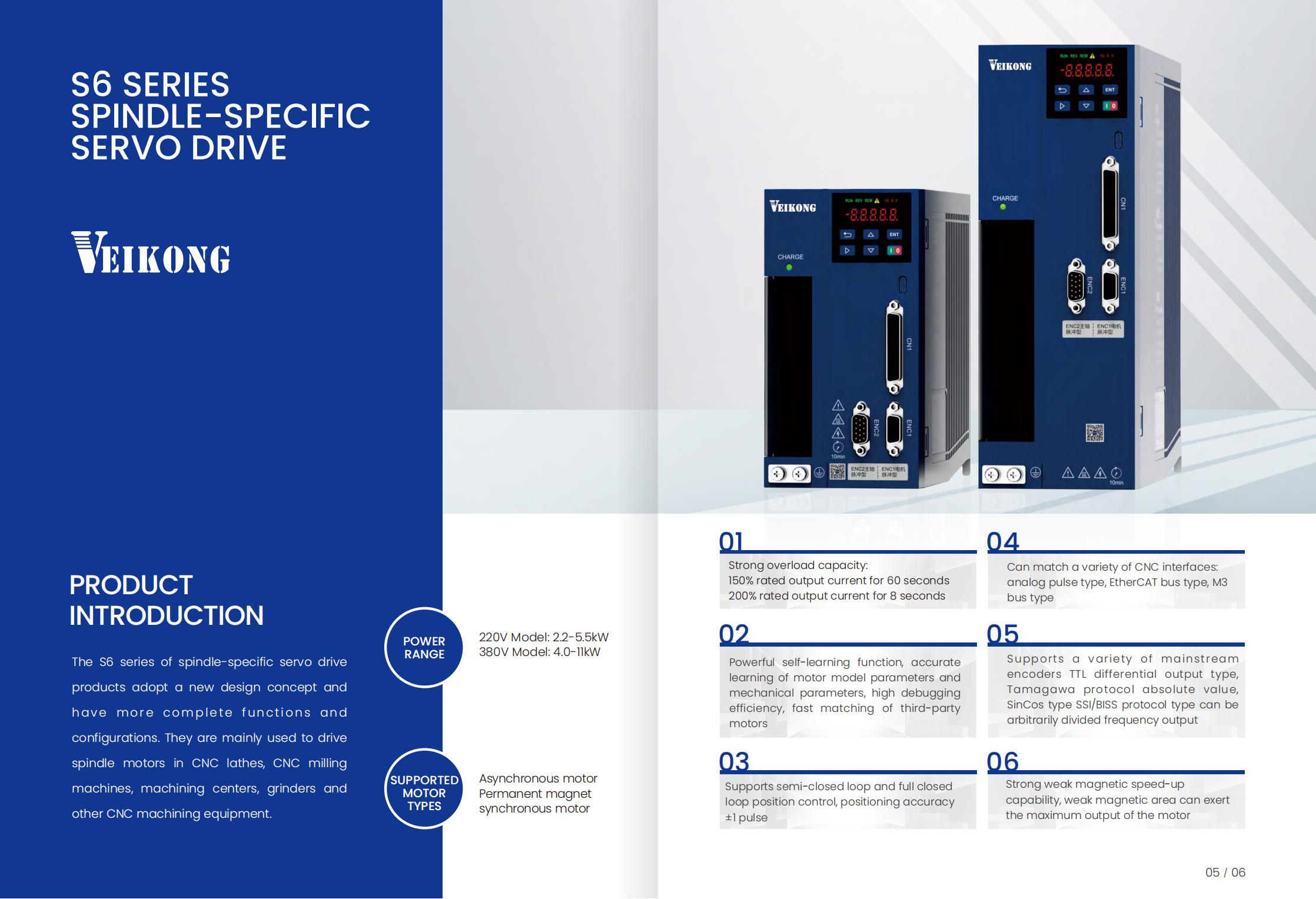

The S6 series of spindle-specific servo drive products adopt a new design concept with more complete functions and configurations. They are mainly used to drive the spindle motors of CNC lathes, CNC milling machines, machining centers, grinders and other CNC processing equipment.
| S6 | |
| Industry | Spindle Dedicated Servo Drive |
| Motor | IM & PMSM |
| Voltage |
Three-phase 380V: 380V~480V
Three-phase 220V: 200V~240V
|
| Power | 2.2kW – 11kW |
| Control | SVC, VC |
| Communication |
S6: Modbus communication
S6C: EtherCAT bus communication
S6M: M3 bus communication
|
| Encoder Interface |
Motor encoder interface + spindle encoder interface
S6: two TTL differential encoder interfaces
S6C: composite encoder interface
S6M: composite encoder interface
|
| Main Control Function |
Spindle orientation, position control, full closed-loop application, parameter backup and recovery, complete fault record
|
